Inconel Fastener

Get a Price/Quote

Product Details:

Head Type Hex, Socket, Pan, Flat, Round, Custom
Standard ASTM B166, DIN, ISO, ASME, BS
Surface Treatment Passivated / Plain / Electroplated
Hardness Rockwell B80 - C40 (varies with grade)
Load Capacity Up to 25,000 lbs (varies by size/grade)
Torque As per size and grade specification
Drive Type Hex, Slotted, Phillips, Allen
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Inconel Fastener Price And Quantity

Minimum Order Quantity 100 Kilograms

Inconel Fastener Product Specifications

Capacity High-load bearing
Drive Type Hex, Slotted, Phillips, Allen
Finish Bright, Polished, Natural
Tolerance 0.1 mm
Torque As per size and grade specification
Fasteners Type Bolts, Nuts, Screws, Washers, Studs
Load Capacity Up to 25,000 lbs (varies by size/grade)
Thickness Custom or as per DIN/ISO standard
Diameter M3 - M56 or custom
Thread Type Metric, UNC, UNF, Fine, Coarse
Hardness Rockwell B80 - C40 (varies with grade)
Application Aerospace, Chemical Processing, Marine, Oil & Gas, Power Generation
Feature High temperature and corrosion resistance
Tensile Strength Up to 1050 MPa (depending on grade)
Shape Round, Hexagonal, Custom
Surface Treatment Passivated / Plain / Electroplated
Material Inconel (Nickel-Chromium Alloy)
Standard ASTM B166, DIN, ISO, ASME, BS
Corrosion Resistant Yes, Excellent resistance
Head Type Hex, Socket, Pan, Flat, Round, Custom
Grade Inconel 600, 601, 625, 718, X-750

Customisation Available as per drawing/sample
Packaging Export worthy box, pallets or as per client requirement
Thread Direction Right Hand/Left Hand
Density 8.47 g/cm3 (Inconel 625)
Melting Point 1350-1413C
Manufacturing Process Cold/Hot Forged, CNC Machined
Magnetic Properties Non-magnetic (varies by grade)
Operating Temperature Range -200C to +982C
Minimum Order Quantity As per agreement

Inconel Fastener Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Kilograms Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Industrial Fasteners' category

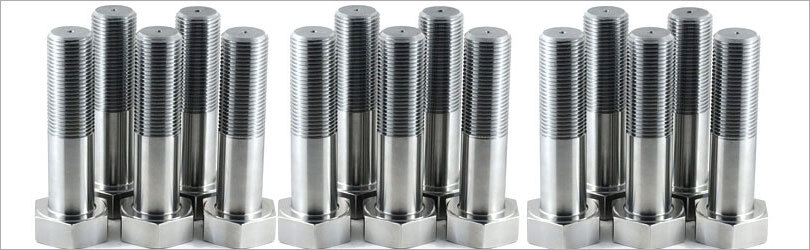

Copper Alloy Fastener Minimum Order Quantity : 100 Application : Automobile, Electrical, Marine, Construction, Power Generation, Railway Hardness : 40120 HV Thread Type : Other, Metric, UNC, UNF, BSW, BSF, BA Diameter : M2 to M36 Thickness : Up to 24 mm Tolerance : 0.02 mm Fasteners Type : Other, Bolts, Nuts, Screws, Studs, Washers, Rivets Load Capacity : Upto 600 Kg Torque : 1070 Nm Finish : Natural, Plated, Tin Coated, Nickel Coated Drive Type : Slotted, Phillips, Allen, Combination Capacity : Custom as per requirement Grade : C101, C110, C27400, C26200, Other Copper Alloys Head Type : Hex, Round, Square, Flat, Cheese, Pan, Customized Corrosion Resistant : Yes Standard : ASTM, DIN, BS, IS, ISO, JIS Material : Other, Copper Alloy Surface Treatment : Other, Polished, Passivated or as required Shape : Round, Square, Threaded, As per drawing Tensile Strength : 200 400 MPa Feature : Good Conductivity, High Strength, Thermal Resistant

Send Inquiry

Duplex Steel Fastener Minimum Order Quantity : 100 Application : Petrochemical, Marine, Oil & Gas, Construction Hardness : Up to 290 HBW Thread Type : Other, Metric, UNC, UNF, BSW Diameter : M6 to M100 Thickness : As per requirement (customized) Tolerance : 0.01 mm Fasteners Type : Other, Bolts, Nuts, Screws, Washers, Studs Load Capacity : Highly dependent on size, up to 75 kN Torque : Up to 800 Nm depending on size Finish : Bright, Matte, Hot Dip Galvanized Drive Type : Slotted, Phillips, Allen, Torx Capacity : Up to 5000 units Grade : Duplex 2205, 31803, 32750, 32760 Head Type : Hex, Allen/Socket, CSK, Pan, Round Corrosion Resistant : Yes, high resistance to corrosion and pitting Standard : ASTM A479 / ASME SA479 Material : Other, Duplex Stainless Steel Surface Treatment : Other, Passivated / Electroplated Shape : Round, Hexagonal, Square Tensile Strength : 620 MPa minimum Feature : Excellent toughness and ductility, Chloride stress corrosion resistance

Send Inquiry

Hastelloy Fastener Minimum Order Quantity : 100 Application : Petrochemical, Chemical, Marine, and Industrial Usage Hardness : 230290 HB Thread Type : Other, Metric / UNC / UNF / Fine / Custom Diameter : M3 to M56 Thickness : As per specification Tolerance : +/ 0.02 mm Fasteners Type : Other, Bolt, Nut, Washer, Screw, Stud Load Capacity : High (as per dimension and material) Torque : As per dimension and application Finish : Bright, Matte, Polished Drive Type : Allen, Phillips, Slotted, Hex Capacity : Custom as per requirement Grade : Hastelloy C276, C22, B2, X, G30 Head Type : Hex, Round, Square, Countersunk, Custom Corrosion Resistant : Yes Standard : ASTM B574 / B575 / B619 / B622 / B626 Material : Other, Hastelloy Alloy Surface Treatment : Other, Passivated, Natural, or as required Shape : Round, Square, Custom Tensile Strength : 690 MPa (min) Feature : High Corrosion Resistance, High Strength

Send Inquiry

Titanium Fastener Minimum Order Quantity : 100 Application : Aerospace, Chemical, Medical, Marine, Automotive Hardness : Rockwell C 3644 Thread Type : Other, Metric / UNF / UNC Diameter : M2 M36 Thickness : As per specification Tolerance : 0.05 mm Fasteners Type : Other, Bolt, Nut, Washer, Screw Load Capacity : High (As per dimensions and grade) Torque : As per DIN/ISO standards Finish : Bright / Polished Drive Type : Slotted / Phillips / Hex Capacity : Custom & Standard Sizes Grade : GR2 / GR5 (Ti6Al4V) Head Type : Hex / Socket / Button / Countersunk Corrosion Resistant : Excellent against seawater and chemicals Standard : ASTM B348 / DIN / ISO / JIS Material : Other, Titanium Surface Treatment : Other, Polished / Anodized Shape : Round / Hexagonal Tensile Strength : up to 950 MPa Feature : Lightweight, High Strength, NonMagnetic

Send Inquiry
