Buttweld Fittings

• Application
• Other, Plumbing, HVAC, Gas Lines, Industrial Piping Systems

• Coating Type
• None / Optional Tin or Nickel Plating

• Color
• Copper Red/Bronze

• Composition
• Copper-based alloy

• Corrosion Resistant
• Yes; Excellent against water and most chemicals

• Diameter
• Available in 1/2 to 4 or as specified

• Dimension (L*W*H)
• Varies as per size (e.g., 3/4 x 3/4 x 3/4)

• Finish Type
• Bright / Natural

• Grade
• C12200, C11000, or as required

• Hardness
• 50-100 HB

• Heat Resistance
• Yes

• Material Composition %
• Copper 99+%, minor alloying elements

• Material Grade
• Pure Copper or Copper Alloy (CW617N, C27200, etc.)

• Product Form
• Tee (Three-way Fitting)

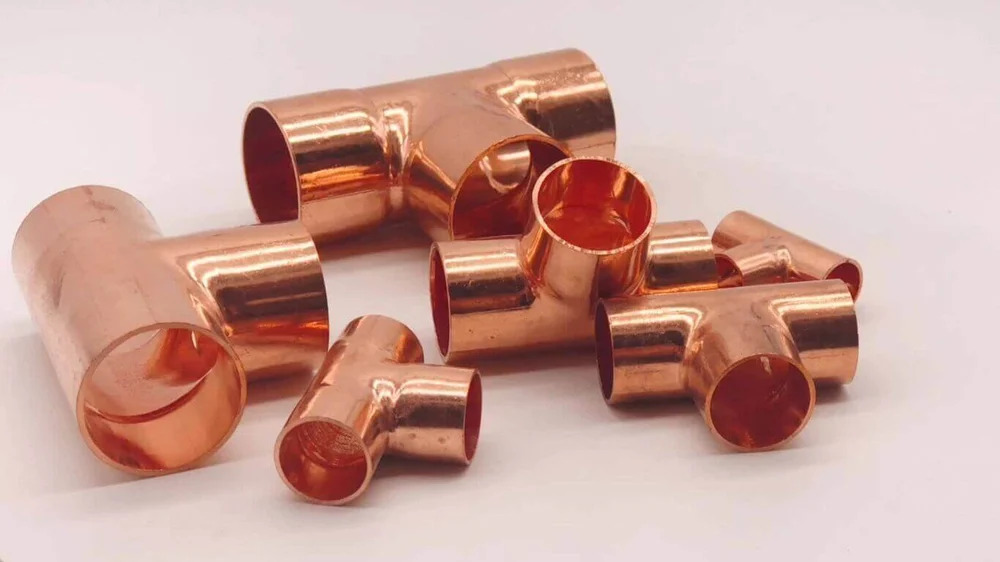

• Product Name
• Other, Copper Alloy Tee

• Recyclable
• Yes

• Shape
• Other, Tee

• Size
• Standard and Custom Sizes Available

• Steel Product Type
• Other, Pipe Fitting

• Steel Standard
• Other, ASTM B62 / ASTM B16 / IS:318 or equivalent

• Steel Type
• Other, Not applicable (Copper Alloy)

• Surface
• Polished / Clean

• Tensile Strength
• 200-250 MPa (Minimum)

• Thickness
• 1-5 mm depending on size

• Usage
• Joining three pipes in a piping system

• Weight
• Depends on size; approx. 50-300 grams

• Application
• Other, Chemical processing, oil & gas, marine, pharmaceuticals, power generation, paper and pulp industries

• Coating Type
• None / As required by customer

• Color
• Metallic silver / gray

• Composition
• Nickel, Molybdenum, Chromium, Iron, Cobalt (varies by grade)

• Corrosion Resistant
• Excellent

• Diameter
• 1/2 NB to 24 NB (Custom sizes on request)

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• Smooth

• Grade
• Hastelloy C276/C22/B2/X/others

• Hardness
• 80-95 HRB

• Heat Resistance
• Yes

• Material Composition %
• Ni: ~57%, Mo: ~15-17%, Cr: ~14-16%, Fe: ~4-7%, Co: ~2.5% (depends on grade)

• Material Grade
• Hastelloy C276/C22/B2/X/others

• Product Form
• Elbow Fitting

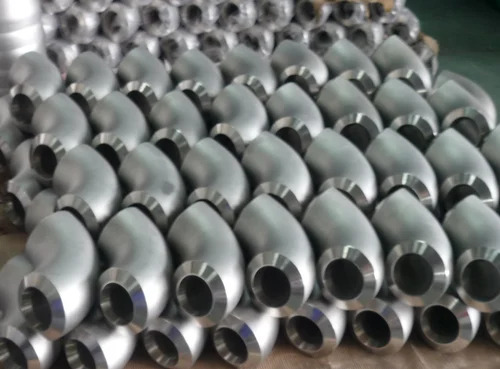

• Product Name
• Other, Hastelloy Elbow

• Recyclable
• Yes

• Shape
• Other, Elbow (90/45/180)

• Size
• Standard and customized sizes available

• Steel Product Type
• Other, Pipe Fitting (Elbow)

• Steel Standard
• Other, ASTM B366 / ASME SB-366

• Steel Type
• Other, Nickel Alloy

• Surface
• Pickled, sand blasted, polished

• Tensile Strength
• 760-785 MPa (varies by grade)

• Thickness
• Schedule 10 to Schedule XXS

• Usage
• Pipeline systems for conveying fluids in harsh environments

• Weight
• Varies with size and specification

• Application
• Other, Pipeline, Oil & Gas, Petrochemical, Power Plant, Water Supply

• Coating Type
• Painted/Oiled

• Color
• Black

• Composition
• Alloy steel: Chromium-Molybdenum based

• Corrosion Resistant
• Yes

• Diameter
• 1/2 to 48 NB (Nominal Bore)

• Dimension (L*W*H)
• As per ASME/ANSI Standard

• Finish Type
• Smooth

• Grade
• A234 WP5, WP9, WP11, WP22, WP91 (others on request)

• Hardness
• 143 HB max (dependent on grade)

• Heat Resistance
• Yes

• Material Composition %
• Cr, Mo, C, Mn, Si as per grade specification

• Material Grade
• Alloy Steel

• Product Form
• Buttweld Elbow

• Product Name
• Other, Alloy Steel Elbow

• Recyclable
• Yes

• Shape
• Other, Elbow (90, 45, 180)

• Size
• Available in all standard pipe sizes

• Steel Product Type
• Other, Pipe Fitting

• Steel Standard
• Other, ASTM A234, ASME B16.9/B16.28

• Steel Type
• Alloy Steel

• Surface
• Black Painted, Anti Rust Oil Coated

• Tensile Strength
• 415-585 MPa

• Thickness
• Schedule 10, 40, 80, 160 or custom

• Usage
• Direction change in piping system

• Weight
• Depends on size and thickness

• Application
• Other, Industrial piping, chemical processing, aerospace, marine, oil & gas, power plants

• Coating Type
• None (Titaniums natural oxide layer)

• Color
• Silver Gray

• Composition
• Titanium, Aluminum, Vanadium (for Grade 5), other alloying elements as per grade

• Corrosion Resistant
• Excellent in seawater, acids, and chloride environments

• Diameter
• 1/2 (15mm) to 24 (600mm) or custom sizes

• Dimension (L*W*H)
• As per standard or customized as per order

• Finish Type
• Smooth, polished

• Grade
• GR2, GR5 (Ti-6Al-4V), GR7

• Hardness
• Grade 2: Rockwell B80, Grade 5: Rockwell C34

• Heat Resistance
• Yes

• Material Composition %
• Grade 2: Ti 99.2%; Grade 5: Ti 90%, Al 6%, V 4%

• Material Grade
• Grade 2, Grade 5, Grade 7

• Product Form
• Butt weld, seamless

• Product Name
• Other, Titanium Elbow

• Recyclable
• Yes, 100%

• Shape
• Other, Elbow (90, 45, custom angles available)

• Size
• Standard or custom sizes

• Steel Product Type
• Other, Pipe Fittings

• Steel Standard
• Other, ASTM B363, ASME SB363

• Steel Type
• Other, Non-ferrous (Titanium)

• Surface
• Polished or pickled

• Tensile Strength
• Grade 2: 344 MPa, Grade 5: 895 MPa

• Thickness
• 2 mm - 20 mm

• Usage
• Changing direction of pipe run in high-performance applications

• Weight
• Varies depending on size and specification
