Titanium Elbow

Get a Price/Quote

Product Details:

Coating Type None (Titaniums natural oxide layer)
Diameter 1/2 (15mm) to 24 (600mm) or custom sizes
Product Form Butt weld, seamless
Recyclable Yes, 100%
Size Standard or custom sizes
Material Composition % Grade 2: Ti 99.2%; Grade 5: Ti 90%, Al 6%, V 4%
Corrosion Resistant Excellent in seawater, acids, and chloride environments
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Titanium Elbow Price And Quantity

Minimum Order Quantity 100 Piece

Titanium Elbow Product Specifications

Material Composition % Grade 2: Ti 99.2%; Grade 5: Ti 90%, Al 6%, V 4%
Shape Elbow (90, 45, custom angles available)
Size Standard or custom sizes
Steel Product Type Pipe Fittings
Corrosion Resistant Excellent in seawater, acids, and chloride environments
Grade GR2, GR5 (Ti-6Al-4V), GR7
Diameter 1/2 (15mm) to 24 (600mm) or custom sizes
Coating Type None (Titaniums natural oxide layer)
Recyclable Yes, 100%
Application Industrial piping, chemical processing, aerospace, marine, oil & gas, power plants
Product Form Butt weld, seamless
Finish Type Smooth, polished
Surface Polished or pickled
Product Name Titanium Elbow
Steel Standard ASTM B363, ASME SB363
Composition Titanium, Aluminum, Vanadium (for Grade 5), other alloying elements as per grade
Usage Changing direction of pipe run in high-performance applications
Thickness 2 mm - 20 mm
Tensile Strength Grade 2: 344 MPa, Grade 5: 895 MPa
Weight Varies depending on size and specification
Heat Resistance Yes
Steel Type Non-ferrous (Titanium)
Hardness Grade 2: Rockwell B80, Grade 5: Rockwell C34
Dimension (L*W*H) As per standard or customized as per order
Color Silver Gray
Material Grade Grade 2, Grade 5, Grade 7

Packing Type Wooden boxes or export-worthy packaging
Availability Ready Stock or Custom Fabrication
Elbow Type Long radius (LR), Short radius (SR)
Magnetic Properties Non-magnetic in all grades
Standards Followed ASME B16.9, MSS-SP-43
Connection Type Butt weld, seamless
Weldability Excellent
Wall Thickness Tolerance 0.5mm or as per specification
OEM Service Available
Lead Time 2-4 weeks based on order quantity
Operating Pressure Up to 3000 psi (depending on size and grade)
Hydrogen Embrittlement Resistance High
Temperature Range -253C to +400C

Titanium Elbow Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Buttweld Fittings' category

Copper Alloy Tee Minimum Order Quantity : 100 Steel Standard : Other, ASTM B62 / ASTM B16 / IS:318 or equivalent Tensile Strength : 200250 MPa (Minimum) Thickness : 15 mm depending on size Usage : Joining three pipes in a piping system Composition : Copperbased alloy Heat Resistance : Yes Weight : Depends on size; approx. 50300 grams Color : Copper Red/Bronze Material Grade : Pure Copper or Copper Alloy (CW617N, C27200, etc.) Hardness : 50100 HB Dimension (L*W*H) : Varies as per size (e.g., 3/4 x 3/4 x 3/4) Steel Type : Other, Not applicable (Copper Alloy) Size : Standard and Custom Sizes Available Shape : Other, Tee Material Composition % : Copper 99+%, minor alloying elements Grade : C12200, C11000, or as required Steel Product Type : Other, Pipe Fitting Corrosion Resistant : Yes; Excellent against water and most chemicals Coating Type : None / Optional Tin or Nickel Plating Diameter : Available in 1/2 to 4 or as specified Product Name : Other, Copper Alloy Tee Surface : Polished / Clean Finish Type : Bright / Natural Product Form : Tee (Threeway Fitting) Application : Other, Plumbing, HVAC, Gas Lines, Industrial Piping Systems Recyclable : Yes

Send Inquiry

Hastelloy Elbow Minimum Order Quantity : 100 Steel Standard : Other, ASTM B366 / ASME SB366 Tensile Strength : 760785 MPa (varies by grade) Thickness : Schedule 10 to Schedule XXS Usage : Pipeline systems for conveying fluids in harsh environments Composition : Nickel, Molybdenum, Chromium, Iron, Cobalt (varies by grade) Heat Resistance : Yes Weight : Varies with size and specification Color : Metallic silver / gray Material Grade : Hastelloy C276/C22/B2/X/others Hardness : 8095 HRB Dimension (L*W*H) : Customizable as per requirement Steel Type : Other, Nickel Alloy Size : Standard and customized sizes available Shape : Other, Elbow (90/45/180) Material Composition % : Ni: ~57%, Mo: ~1517%, Cr: ~1416%, Fe: ~47%, Co: ~2.5% (depends on grade) Grade : Hastelloy C276/C22/B2/X/others Steel Product Type : Other, Pipe Fitting (Elbow) Corrosion Resistant : Excellent Coating Type : None / As required by customer Diameter : 1/2 NB to 24 NB (Custom sizes on request) Product Name : Other, Hastelloy Elbow Surface : Pickled, sand blasted, polished Finish Type : Smooth Product Form : Elbow Fitting Application : Other, Chemical processing, oil & gas, marine, pharmaceuticals, power generation, paper and pulp industries Recyclable : Yes

Send Inquiry

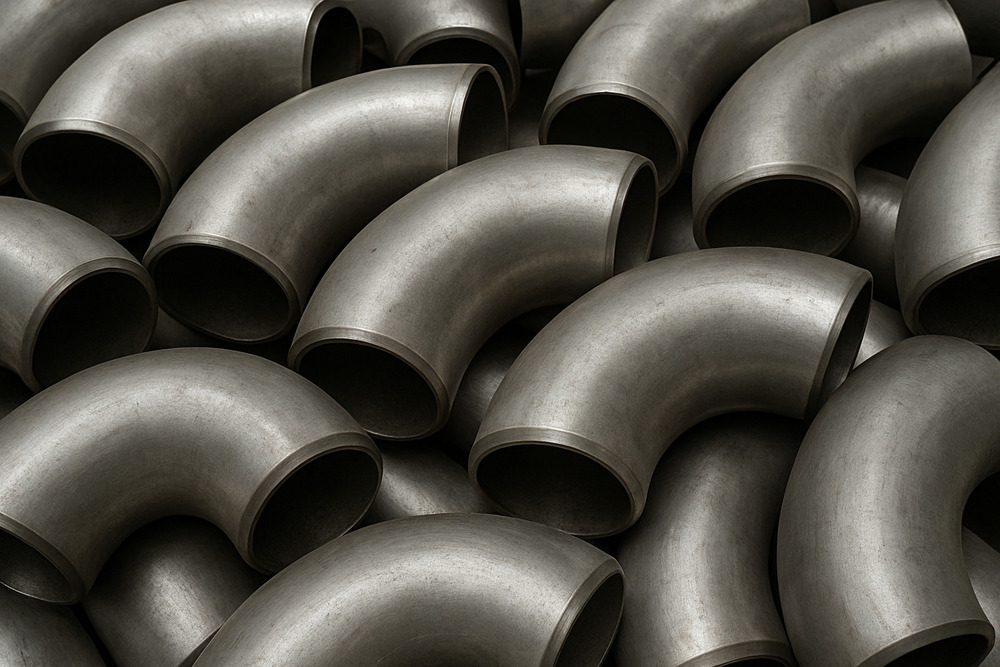

Alloy Steel Elbow Minimum Order Quantity : 100 Steel Standard : Other, ASTM A234, ASME B16.9/B16.28 Tensile Strength : 415585 MPa Thickness : Schedule 10, 40, 80, 160 or custom Usage : Direction change in piping system Composition : Alloy steel: ChromiumMolybdenum based Heat Resistance : Yes Weight : Depends on size and thickness Color : Black Material Grade : Alloy Steel Hardness : 143 HB max (dependent on grade) Dimension (L*W*H) : As per ASME/ANSI Standard Steel Type : Alloy Steel Size : Available in all standard pipe sizes Shape : Other, Elbow (90, 45, 180) Material Composition % : Cr, Mo, C, Mn, Si as per grade specification Grade : A234 WP5, WP9, WP11, WP22, WP91 (others on request) Steel Product Type : Other, Pipe Fitting Corrosion Resistant : Yes Coating Type : Painted/Oiled Diameter : 1/2 to 48 NB (Nominal Bore) Product Name : Other, Alloy Steel Elbow Surface : Black Painted, Anti Rust Oil Coated Finish Type : Smooth Product Form : Buttweld Elbow Application : Other, Pipeline, Oil & Gas, Petrochemical, Power Plant, Water Supply Recyclable : Yes
