SS Sheet And Plates

• Application
• Other, Automotive, Construction, Machinery, Engineering projects

• Coating Type
• Uncoated / Surface Treated / Customized

• Color
• Metallic Gray

• Composition
• Chromium, Molybdenum, Nickel, Carbon (as per grade)

• Corrosion Resistant
• Yes, moderate to high depending on grade

• Diameter
• Not applicable, provided as width

• Dimension (L*W*H)
• Customized as per requirement

• Finish Type
• Mill Finish / Polished

• Grade
• AISI 4130 / EN19 / EN24 / as required

• Hardness
• 170-250 HB (typical, depends on grade)

• Heat Resistance
• Yes

• Material Composition %
• As per relevant grade standard

• Material Grade
• Alloyed as per specification

• Product Form
• Sheet

• Product Name
• Other, Alloy Steel Sheet

• Recyclable
• Yes

• Shape
• Other, Rectangular / Square / Customized

• Size
• Customized dimensions available

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM / JIS / DIN / EN / IS

• Steel Type
• Alloy Steel

• Surface
• Polished, Smooth

• Tensile Strength
• Up to 1000 MPa or as required

• Thickness
• 0.5 mm - 100 mm

• Usage
• Fabrication, Structural, Components manufacturing

• Weight
• Varies as per size and thickness

• Application
• Other, Industrial, Chemical Processing, Marine, Aerospace, Power Generation

• Coating Type
• Uncoated / As per customer requirement

• Color
• Silver

• Composition
• Nickel, Chromium, Iron, Molybdenum, Niobium, Other Trace Elements

• Corrosion Resistant
• Excellent Corrosion Resistance to Oxidizing and Reducing Environments

• Diameter
• N/A for plates (applicable for round bars)

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• 2B, BA, HR, CR

• Grade
• Inconel 600 / 625 / 718 / 800 / 825 (as per requirement)

• Hardness
• Rockwell B88 to C35

• Heat Resistance
• Yes

• Material Composition %
• Nickel 58 to 72%, Chromium 14 to 23%, Iron 5 to 21%, Molybdenum up to 9%, Niobium up to 5%

• Material Grade
• Inconel 600 / 625 / 718 / 800 / 825

• Product Form
• Plate/Sheet

• Product Name
• Other, Inconel Plates

• Recyclable
• Yes

• Shape
• Other, Rectangular, Square, Custom Shape

• Size
• Standard 1000 mm x 2000 mm, 1250 mm x 2500 mm, 1500 mm x 3000 mm / Custom sizes

• Steel Product Type
• Other, Plate

• Steel Standard
• Other, ASTM B168 / ASTM B443 / ASTM B906

• Steel Type
• Alloy Steel

• Surface
• Polished, Bright, Hot Rolled, Cold Rolled

• Tensile Strength
• 758 MPa to 1280 MPa (depending on grade)

• Thickness
• 0.5 mm to 50 mm (custom sizes available)

• Usage
• Pressure Vessels, Heat Exchangers, Furnace components, Chemical Equipment

• Weight
• Varies as per size and thickness

• Application
• Other, Aerospace, Chemical Processing, Medical, Marine, Industrial Equipment, Power Generation

• Coating Type
• Uncoated / As rolled

• Color
• Silver Gray

• Composition
• Titanium alloy or commercially pure titanium

• Corrosion Resistant
• Excellent

• Diameter
• N/A for sheets

• Dimension (L*W*H)
• 1220mm x 2440mm x Varying thickness

• Finish Type
• Polished, Hot Rolled, Cold Rolled

• Grade
• GR1, GR2, GR5, GR7, GR9, GR12

• Hardness
• 60 - 370 HV (varies by grade)

• Heat Resistance
• Yes

• Material Composition %
• Ti 99.5% (for CP grades), alloy elements as per grade

• Material Grade
• GR1 - GR12

• Product Form
• Sheet

• Product Name
• Other, Titanium Sheets

• Recyclable
• Yes

• Shape
• Other, Rectangular, Square, Custom Cuts

• Size
• Customizable as per requirement

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM B265, ASME SB265

• Steel Type
• Other, Titanium

• Surface
• Pickled, Polished, Hot Rolled, Cold Rolled

• Tensile Strength
• min 240 - 950 MPa (varies by grade)

• Thickness
• 0.5 mm to 20 mm

• Usage
• Industrial, Medical, Aerospace, Chemical and Marine Applications

• Weight
• Depends on size and thickness

• Application
• Other, Chemical Processing, Aerospace, Marine, Power Generation, Oil & Gas Industries

• Coating Type
• Uncoated

• Color
• Metallic Grey

• Composition
• Nickel, Molybdenum, Chromium (with varying contents as per grade)

• Corrosion Resistant
• Yes, excellent resistance to corrosion

• Dimension (L*W*H)
• Customized as per requirement

• Finish Type
• Plain, Mirror, 2B, BA, No.4

• Grade
• Hastelloy C276, C22, B2, X

• Hardness
• Rockwell B90 max (annealed)

• Heat Resistance
• Yes

• Material Composition %
• Nickel (approx. 57%), Molybdenum (15-17%), Chromium (14.5-16.5%)

• Material Grade
• Hastelloy C276/C22/B2/X

• Product Form
• Sheet

• Product Name
• Other, Hastelloy Sheet

• Recyclable
• Yes

• Shape
• Other, Rectangular, Square

• Size
• 1000 mm x 2000 mm, 1220 mm x 2440 mm or as required

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM B575, ASME SB575

• Steel Type
• Other, Nickel Alloy Steel

• Surface
• Bright, Polished, Hot Rolled, Cold Rolled

• Tensile Strength
• 690 MPa (min) for C276

• Thickness
• 0.5 mm to 50 mm

• Usage
• Fabrication, Linings, Components Handling Corrosive Materials, Equipment Manufacturing

• Weight
• Variable (Depends on sheet size and thickness)

• Application
• Other, Industrial, Chemical Processing, Marine, Oil & Gas, Pulp and Paper, Power Plant Equipment

• Coating Type
• Uncoated / Mill Finish

• Color
• Metallic Silver

• Composition
• Cr 21-23%, Ni 4.5-6.5%, Mo 2.5-3.5%, N 0.08-0.2%, balance Fe

• Corrosion Resistant
• Yes, Excellent Resistance to Pitting and Crevice Corrosion

• Diameter
• Not applicable (sheet form)

• Dimension (L*W*H)
• Standard or Custom, e.g. 2500 mm x 1250 mm x Thickness

• Finish Type
• 2B, No.1, No.4, BA, Mirror Finish

• Grade
• UNS S31803, UNS S32205, or as per requirement

• Hardness
• 290 HB

• Heat Resistance
• Yes

• Material Composition %
• Cr 21-23%, Ni 4.5-6.5%, Mo 2.5-3.5%, N 0.08-0.2%, Fe balance

• Material Grade
• 2205, 2507, or as specified

• Product Form
• Flat Sheet / Plate

• Product Name

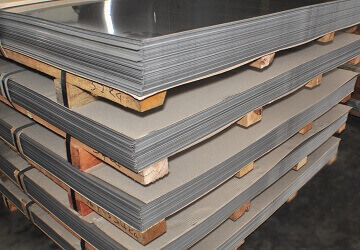

• Other, Duplex Steel Sheet

• Recyclable
• Yes

• Shape
• Other, Rectangular, Square, or as required

• Size
• Width: Up to 2500 mm, Length: Custom up to 6000 mm

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM A240, ASTM A789, ASTM A790, EN 10028-7

• Steel Type
• Other, Duplex Stainless Steel

• Surface
• Hot Rolled, Cold Rolled, 2B, No.1, No.4, BA, Hairline, Mirror Finish

• Tensile Strength
• 620 MPa min

• Thickness
• 1 mm to 50 mm or customized

• Usage
• Process Equipment, Heat Exchangers, Pressure Vessels, Construction

• Weight
• Depends on dimensions and thickness (customizable)

• Application
• Other, Electrical, Industrial Machinery, Marine, Construction, Plumbing, Engineering, Automotive, Decorative Purposes

• Coating Type
• Uncoated / Bare / Custom (on request)

• Color
• Reddish Brown

• Composition
• Copper (Cu) with minor alloying elements (Zn, Ni, etc.)

• Corrosion Resistant
• Yes

• Diameter
• Not applicable (Plate form - refer to dimensions)

• Dimension (L*W*H)
• As per requirement / Customizable (e.g. 1000mm x 2000mm x 3mm)

• Finish Type
• Mill, Polished, Bright

• Grade
• C10100, C11000, C12200, or as required

• Hardness
• 40-110 HV (depends on temper and grade)

• Heat Resistance
• Yes

• Material Composition %
• Typically 99%-99.9% Copper, balance alloying elements

• Material Grade
• Electrolytic Tough Pitch (ETP), Deoxidized High Phosphorus (DHP), or as specified

• Product Form
• Plate

• Product Name
• Other, Copper Alloy Plates

• Recyclable
• Yes

• Shape
• Other, Rectangular, Square, Custom shapes

• Size
• Standard & Custom sizes (width up to 1250mm, length as required)

• Steel Product Type
• Other, Plate

• Steel Standard
• Other, ASTM B152, JIS H3100, EN 1652

• Steel Type
• Other, Not applicable (Copper Alloy)

• Surface
• Mill Finish, Polished, Bright, Smooth

• Tensile Strength
• 215-300 MPa (depends on grade)

• Thickness
• 0.5mm to 150mm

• Usage
• Conductors, Busbars, Architectural Cladding, Gaskets, Heat Exchangers

• Weight
• Varies as per size and thickness (e.g. 2-50 kg per plate)

• Application
• Other, Marine engineering, chemical processing, oil and gas, valves, pumps, heat exchangers, and power generation

• Coating Type
• Uncoated / No coating

• Color
• Silver Grey

• Composition
• Nickel (63% min), Copper (28%-34%), Iron, Manganese, trace elements

• Corrosion Resistant
• Excellent resistance to seawater, acids, alkalis

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• Hot Rolled, Cold Rolled

• Grade
• Monel 400 / Monel K500

• Hardness
• Rockwell B75-B90

• Heat Resistance
• Yes

• Material Composition %
• Nickel 63% min, Copper 28-34%, Iron up to 2.5%, Manganese up to 2%

• Material Grade
• Monel 400, Monel K500

• Product Form
• Plate

• Product Name
• Other, Monel Plates

• Recyclable
• Yes

• Shape
• Other, Rectangular, Square

• Size
• 1000mm x 2000mm, 1220mm x 2440mm, Custom sizes available

• Steel Product Type
• Other, Plates

• Steel Standard
• Other, ASTM B127, ASME SB127

• Steel Type
• Other, Nickel-Copper Alloy (Monel)

• Surface
• Smooth, Bright, Mill Finish

• Tensile Strength
• 490 MPa (Min) for Monel 400

• Thickness
• 0.5mm to 100mm

• Usage
• Fabrication, Structural applications, Pressure vessels, Tanks

• Weight
• Varies as per dimensions
