Monel Plates

Get a Price/Quote

Product Details:

Heat Resistance Yes
Coating Type Uncoated / No coating
Corrosion Resistant Excellent resistance to seawater, acids, alkalis
Recyclable Yes
Material Composition % Nickel 63% min, Copper 28-34%, Iron up to 2.5%, Manganese up to 2%
Size 1000mm x 2000mm, 1220mm x 2440mm, Custom sizes available
Hardness Rockwell B75-B90
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Monel Plates Price And Quantity

Minimum Order Quantity 100 Kilograms

Monel Plates Product Specifications

Steel Standard ASTM B127, ASME SB127
Finish Type Hot Rolled, Cold Rolled
Product Name Monel Plates
Material Composition % Nickel 63% min, Copper 28-34%, Iron up to 2.5%, Manganese up to 2%
Steel Product Type Plates
Dimension (L*W*H) Customizable as per requirement
Application Marine engineering, chemical processing, oil and gas, valves, pumps, heat exchangers, and power generation
Usage Fabrication, Structural applications, Pressure vessels, Tanks
Tensile Strength 490 MPa (Min) for Monel 400
Weight Varies as per dimensions
Product Form Plate
Hardness Rockwell B75-B90
Size 1000mm x 2000mm, 1220mm x 2440mm, Custom sizes available
Color Silver Grey
Composition Nickel (63% min), Copper (28%-34%), Iron, Manganese, trace elements
Shape Rectangular, Square
Heat Resistance Yes
Thickness 0.5mm to 100mm
Coating Type Uncoated / No coating
Material Grade Monel 400, Monel K500
Surface Smooth, Bright, Mill Finish
Steel Type Nickel-Copper Alloy (Monel)
Recyclable Yes
Corrosion Resistant Excellent resistance to seawater, acids, alkalis
Grade Monel 400 / Monel K500

Elongation 35% (minimum for Monel 400)
Melting Point 1300-1350C
Lead Time Ready stock or 2-8 weeks based on order quantity
Packing Export seaworthy wooden pallets/boxes
Delivery Condition Annealed, Pickled, Polished
Density 8.8 g/cm3
Minimum Order Quantity As per manufacturer's policy
Magnetic Properties Slightly magnetic in certain conditions
Machinability Good with proper tooling

Monel Plates Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Kilograms Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'SS Sheet And Plates' category

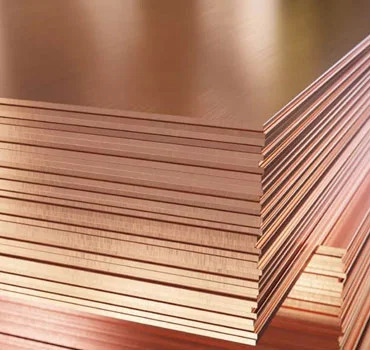

Copper Alloy Plates Minimum Order Quantity : 100 Finish Type : Mill, Polished, Bright Product Name : Other, Copper Alloy Plates Steel Standard : Other, ASTM B152, JIS H3100, EN 1652 Steel Product Type : Other, Plate Dimension (L*W*H) : As per requirement / Customizable (e.g. 1000mm x 2000mm x 3mm) Application : Other, Electrical, Industrial Machinery, Marine, Construction, Plumbing, Engineering, Automotive, Decorative Purposes Usage : Conductors, Busbars, Architectural Cladding, Gaskets, Heat Exchangers Material Composition % : Typically 99%99.9% Copper, balance alloying elements Size : Standard & Custom sizes (width up to 1250mm, length as required) Hardness : 40110 HV (depends on temper and grade) Color : Reddish Brown Tensile Strength : 215300 MPa (depends on grade) Weight : Varies as per size and thickness (e.g. 250 kg per plate) Product Form : Plate Composition : Copper (Cu) with minor alloying elements (Zn, Ni, etc.) Shape : Other, Rectangular, Square, Custom shapes Heat Resistance : Yes Thickness : 0.5mm to 150mm Coating Type : Uncoated / Bare / Custom (on request) Material Grade : Electrolytic Tough Pitch (ETP), Deoxidized High Phosphorus (DHP), or as specified Corrosion Resistant : Yes Grade : C10100, C11000, C12200, or as required Surface : Mill Finish, Polished, Bright, Smooth Steel Type : Other, Not applicable (Copper Alloy) Recyclable : Yes Diameter : Not applicable (Plate form refer to dimensions)

Send Inquiry

Titanium Sheets Minimum Order Quantity : 100 Finish Type : Polished, Hot Rolled, Cold Rolled Product Name : Other, Titanium Sheets Steel Standard : Other, ASTM B265, ASME SB265 Steel Product Type : Other, Sheet Dimension (L*W*H) : 1220mm x 2440mm x Varying thickness Application : Other, Aerospace, Chemical Processing, Medical, Marine, Industrial Equipment, Power Generation Usage : Industrial, Medical, Aerospace, Chemical and Marine Applications Material Composition % : Ti 99.5% (for CP grades), alloy elements as per grade Size : Customizable as per requirement Hardness : 60 370 HV (varies by grade) Color : Silver Gray Tensile Strength : min 240 950 MPa (varies by grade) Weight : Depends on size and thickness Product Form : Sheet Composition : Titanium alloy or commercially pure titanium Shape : Other, Rectangular, Square, Custom Cuts Heat Resistance : Yes Thickness : 0.5 mm to 20 mm Coating Type : Uncoated / As rolled Material Grade : GR1 GR12 Corrosion Resistant : Excellent Grade : GR1, GR2, GR5, GR7, GR9, GR12 Surface : Pickled, Polished, Hot Rolled, Cold Rolled Steel Type : Other, Titanium Recyclable : Yes Diameter : N/A for sheets

Send Inquiry

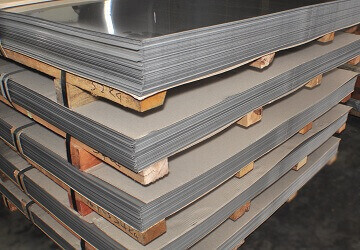

Duplex Steel Sheet Minimum Order Quantity : 100 Finish Type : 2B, No.1, No.4, BA, Mirror Finish Product Name : Other, Duplex Steel Sheet Steel Standard : Other, ASTM A240, ASTM A789, ASTM A790, EN 100287 Steel Product Type : Other, Sheet Dimension (L*W*H) : Standard or Custom, e.g. 2500 mm x 1250 mm x Thickness Application : Other, Industrial, Chemical Processing, Marine, Oil & Gas, Pulp and Paper, Power Plant Equipment Usage : Process Equipment, Heat Exchangers, Pressure Vessels, Construction Material Composition % : Cr 2123%, Ni 4.56.5%, Mo 2.53.5%, N 0.080.2%, Fe balance Size : Width: Up to 2500 mm, Length: Custom up to 6000 mm Hardness : 290 HB Color : Metallic Silver Tensile Strength : 620 MPa min Weight : Depends on dimensions and thickness (customizable) Product Form : Flat Sheet / Plate Composition : Cr 2123%, Ni 4.56.5%, Mo 2.53.5%, N 0.080.2%, balance Fe Shape : Other, Rectangular, Square, or as required Heat Resistance : Yes Thickness : 1 mm to 50 mm or customized Coating Type : Uncoated / Mill Finish Material Grade : 2205, 2507, or as specified Corrosion Resistant : Yes, Excellent Resistance to Pitting and Crevice Corrosion Grade : UNS S31803, UNS S32205, or as per requirement Surface : Hot Rolled, Cold Rolled, 2B, No.1, No.4, BA, Hairline, Mirror Finish Steel Type : Other, Duplex Stainless Steel Recyclable : Yes Diameter : Not applicable (sheet form)

Send Inquiry

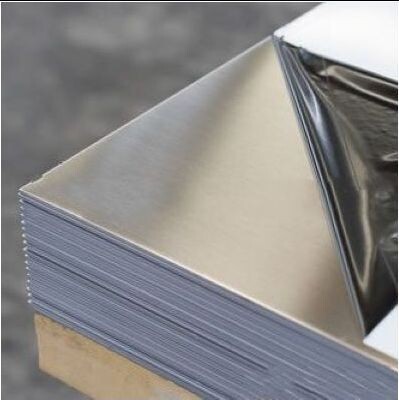

Alloy Steel Sheet Minimum Order Quantity : 100 Finish Type : Mill Finish / Polished Product Name : Other, Alloy Steel Sheet Steel Standard : Other, ASTM / JIS / DIN / EN / IS Steel Product Type : Other, Sheet Dimension (L*W*H) : Customized as per requirement Application : Other, Automotive, Construction, Machinery, Engineering projects Usage : Fabrication, Structural, Components manufacturing Material Composition % : As per relevant grade standard Size : Customized dimensions available Hardness : 170250 HB (typical, depends on grade) Color : Metallic Gray Tensile Strength : Up to 1000 MPa or as required Weight : Varies as per size and thickness Product Form : Sheet Composition : Chromium, Molybdenum, Nickel, Carbon (as per grade) Shape : Other, Rectangular / Square / Customized Heat Resistance : Yes Thickness : 0.5 mm 100 mm Coating Type : Uncoated / Surface Treated / Customized Material Grade : Alloyed as per specification Corrosion Resistant : Yes, moderate to high depending on grade Grade : AISI 4130 / EN19 / EN24 / as required Surface : Polished, Smooth Steel Type : Alloy Steel Recyclable : Yes Diameter : Not applicable, provided as width
